Titan Structural Reinforcement Bowed Wall Kit

Titan Structural Reinforcement Bowed Wall Strap Kit - 6 Pack Carbon Fiber Straps
  • A chemically-fused wall bracing installation kit featuring Titan Structural Reinforcement Carbon Fiber with our high performance epoxies for bowed concrete and masonry applications.
  • Provides exceptional strength to structurally reinforce bowed walls with inward deflections up to 2-inches. Repairs are 10 times stronger than steel and 5 times stronger than alternative carbon fiber installations.
  • No additional components or invasive installations. Minimal prep and straightforward installation reduces time and labor to help lower overall costs.
  • Non-corrosive and requires no follow-up maintenance. Low-profile straps (thin as a dime) provide an unobtrusive finish while allowing for the option to be painted over to make repairs nearly invisible.
  • 2-pack and 6-pack kit variations accommodate section widths less than 6-feet to as wide as approximately 28-feet. Available for easy contractor purchase without prerequisite certification requirements

Contractor Pricing & Purchasing

Contractors may purchase this product via EmecoleShop.com, our contractor exclusive website (requires an EmecoleShop.com Contractor Account). For questions or to purchase by phone, call 815-372-2493.

Strengthen & Preserve Bowed Concrete Walls

Applies the tensile strength of Titan Structural Reinforcement Carbon Fiber with high performance epoxies to form a chemically-fused interior wall bracing system for bowed concrete and masonry wall applications. The all-in-one ICC approved kit includes complete system components for a successful installation of carbon fiber straps to structurally reinforce walls with inward bowing up to 2-inches. A successful installation is 10 times stronger than steel and 5 times stronger than alternative carbon fiber options on the market.

The Titan Structural Reinforcement Bowed Wall Strap Kit comes in 2-pack and 6-pack carbon fiber strap variations providing material quantities to service section widths less than 6-feet to as wide as approximately 28-feet, making it ideal for poured and block basement foundations, retaining walls, or parking garages. It’s one-time and non-invasive practical installation is cost-effective and labor-friendly while its ICC accreditation ensures compliance with common residential and commercial building codes, expediting installation reviews and approvals.

Typical Bowed Wall Applications & Optimal Servicing

Typical wall bowing stems from either sinking of the foundation or lateral pressure resulting from expanding soil. The first signs of a problem usually involve the formation of diagonal and horizontal cracks that widen over time, often exceeding 1/8-inch (unlike non-structural cracks which occur from concrete shrinkage and are more likely to maintain their hairline width). As the cracks widen, the wall weakens and begins to bow or bulge inward – usually from the top with poured concrete and from the center with non-poured concrete or masonry.

Based on engineering specifications, a successful Titan Structural Reinforcement Carbon Fiber installation will protect bowed and cracked concrete up to 2-inches in deflection. The earlier the wall is stabilized, the less deterioration and compromise to its structural integrity. Walls subject to prolonged deterioration or movement may require additional and more invasive measures while also increasing costs.

For optimal results, any active settlement around the application should be resolved prior to Titan Structural Reinforcement Carbon Fiber installations. For applications with deflections exceeding 2-inches, we recommend having examined by a structural engineer. In such scenarios, a pushback is generally recommended.

Thoroughly Engineered to Maximize Strength

Titan Structural Reinforcement Carbon Fiber is manufactured with thousands of parallel fiber strands tightly woven into unidirectional fabric material. It comes packaged in precut rolls that separate into individual 8-foot by 6-inch carbon fiber straps.

Its unique advantage as a carbon element enables Titan Structural Reinforcement Carbon Fiber to form multiple covalent bonds. When saturated with our uniquely formulated set of Titan Structural Reinforcement epoxies, the resulting reactions add strength to the substrate and each strap as they become one via a fiber reinforced polymer (FRP) laminate. The permanently fused Titan Structural Reinforcement Carbon Fiber is stretch-resistant and will not allow movement to the wall or cracks.

Easy Integration with any Waterproofing or Building Construction Business

Titan Structural Reinforcement Carbon Fiber installations are cost-effective and practical without requiring excess components or processes for stabilizing typical bowed wall applications. Our straightforward installation reduces worry over unintentional damage to the foundation, which may potentially occur when using more labor-intensive carbon fiber systems that include the involvement of rim joists, which usually are not necessary when addressing a typical bowed concrete foundation.

Its favorable pricing, minimal supply investment, and easy installation makes Titan Structural Reinforcement Carbon Fiber simple to integrate with any professional repair-based business looking to either expand services and growth or on the search for a more cost-effective carbon fiber supplier. Its convenient kit packaging simplifies product selection and is easily accessible for purchase without prerequisite certification requirements.

Proceed with Full Confidence

The components that make up the Titan Structural Reinforcement Bowed Wall Strap Kit have been independently evaluated to confirm product performance is compliant with common building code requirements. The ICC stamp of approval is widely recognized throughout the building construction industry, allowing inspectors and code officials to review and approve Titan Structural Reinforcement Carbon Fiber Strap installations with increased confidence and efficiency.

For added assurance, the Titan Structural Reinforcement Bowed Wall Strap Kit comes with a 30-year product warranty.

Installers are required to view installation video for ICC certifications to apply. To inquire, please contact the Emecole Metro sales team.

Kit Variations

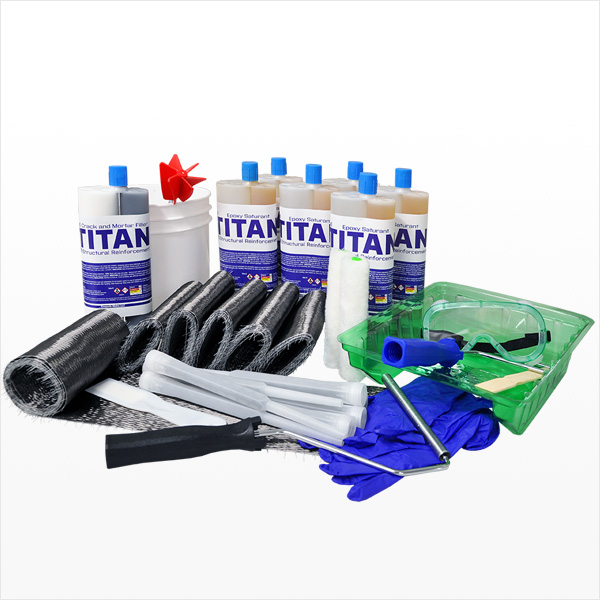

  • 6-Pack Variation: Service up to an approximate 28-foot section (6 carbon fiber straps via two 24-foot precut carbon fiber rolls).

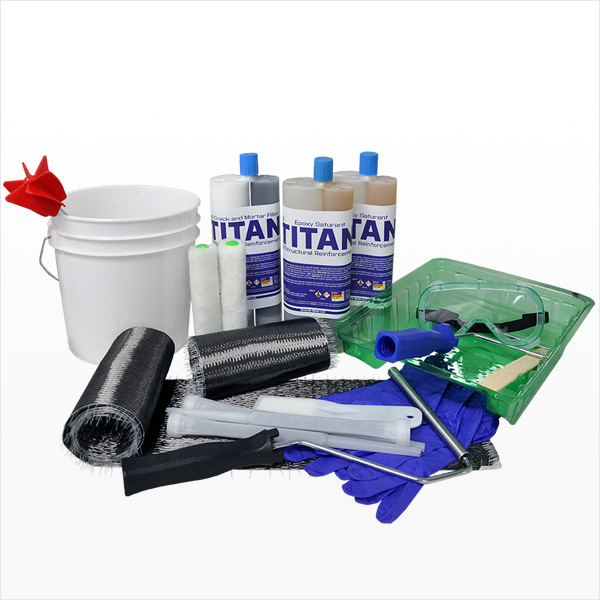

  • 2-Pack Variation: Service up to an approximate 6-foot section (2 carbon fiber straps via one 16-foot precut carbon fiber roll).

Important Note: Precise coverage varies per individual job site specifications. Please refer to installation manual for usage and placement guidelines and additional requirements. For additional assistance, the Emecole Metro team of technical consultants is a phone call or email away.

Included Kit Components

  • Titan Structural Reinforcement Carbon Fiber in precut rolls that separate into 8-foot by 6-inch carbon fiber straps
  • Titan Structural Reinforcement Epoxy Paste (parts A and B)
  • Titan Structural Reinforcement Primer (parts A and B)
  • Titan Structural Reinforcement Saturant (parts A and B)
  • Additional installation accessories include paint roller and covers, mixing sticks, and tray

Supplemental Content:

PDF Document Prop 65 Warning (California)
