Emecole Metro 20 ft. DIY Foundation Crack Repair – Polyurethane Injection Kit


For contractor pricing on this item and expanded product availability, sign up for an EmecoleShop.com Contractor Account (available for licensed contractors only).


Fast & Reliable Shipping - See Shipping Map

Same day shipping on all in-stock orders placed by 2pm CST Mon-Fri.

SKU: N/A Category:

Repair typical basement wall cracks that pose no structural threat to the foundation. Using the proven crack injection process, this fully equipped kit includes all the components needed to repair approximately 20 feet of cracks in poured concrete. No special skills are required – simply follow the step-by-step instructions (refer to the written and video instructions further below).

This kit features Emecole Metro 102 Premium Polyurethane, our most advanced polyurethane that we have been manufacturing and supplying for over 30 years. Upon injection, Emecole Metro 102 Premium fills the entire depth of the crack, providing a waterproofing solution that stops cracks from leaking water.

Such common non-structural cracks develop as a result of shrinkage in the concrete, which can begin as soon as 28 days following the pouring of a foundation. These cracks are usually hairline thin to a 1/8” wide. They are normally vertical or slightly diagonal, and it isn’t uncommon for them to form around basement windows. While they are a nuisance by allowing in water, the structural integrity of the foundation is not compromised. For cracks that do pose a structural risk to the foundation, we recommend using our 20 ft. Epoxy Injection Kit.

The high expansion capabilities of Emecole Metro 102 Premium make it the most user-friendly injection option for repairing such common cracks. Upon reacting with water, it expands up to 20 times its original state of volume. This expansion ensures that cracks are filled from front-to-back and bottom-to-top. The hydrophobic characteristics of Emecole Metro 102 Premium ensure it will not shrink or deteriorate over time. The end result is a flexible and watertight repair that helps maintain a dry and healthy basement environment.

  • Inject using your own standard caulk gun.
  • No digging or drilling. Inject directly into cracks from inside of the basement.
  • Our premium polyurethane accommodates crack widths from hairline thin to 1/4″ wide.
  • Injected polyurethane does not shrink or deteriorate over time.
  • The low pressure crack injection process was pioneered by our company. This proven repair process has been used by contractors and homeowners to successfully repair cracks for more than 30 years.
  • As the manufacturer and supplier, our product is supported by our in-house team of basement crack repair experts, from our production staff to our technical support specialists.
  • Four (4) universal cartridges of Emecole Metro 102 Premium Polyurethane
  • Choice of Surface Seal
    • Stays on the wallFour (4) jars of Emecole Metro 901 Surface Seal – cures in approximately one hour and stays on the wall after injection (may be removed, if desired, by chipping or grinding it off)
    • Easily peels off the wall – Four (4) universal cartridges of Emecole Metro 322 Premium Surface Seal-n-Peel – cures in approximately 35 to 45 minutes and easily peels off the basement wall leaving a clean finished look
  • Thirty (30) surface ports and caps
  • Static mixing nozzles
  • Injection hose assembly
  • Plastic squeeze bottle
  • Also included are rubber gloves, safety glasses, wire brush, mixing sticks, drop cloth, plastic trowel and written instructions.

Additional Components Required (Not Included)

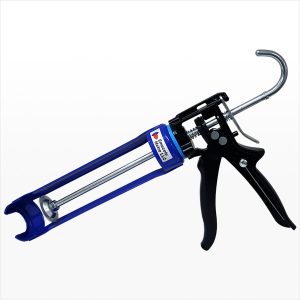

  • Standard caulk gun (for injection of Emecole Metro 102 Premium Polyurethane)

Step-By-Step Instructions

Video Instructions:

Emecole Metro Support Video Injection with Surface Seal

Emecole Metro Support Video Injection with Surface Seal-n-Peel

Written Instructions:

Informational Document Injection (both Surface Seal options)

Frequently Asked Questions

Do universal cartridges still contain Part A and a Part B materials?

Yes, the injection material packaged in universal cartridges for this kit contains both Part A and Part B materials. Our universal cartridge is engineered to separate the two component materials horizontally, ensuring they are not mixed while inside the cartridge.

If the basement wall crack is high enough to raise above grade, does the exterior of the crack need to be covered from the outside?

Yes, any cracks that are exposed on the outside because they are above grade will need to be covered with your included surface seal, otherwise, the injected polyurethane or epoxy will leak out, potentially compromising the repair in addition to also wasting material.

A repair to my basement wall crack was previously attempted with the use of hydraulic cement and has since started to leak water again. Can your product still be used to rectify the previous repair attempt?

Yes. The use of this kit requires access to the crack, so a few extra steps will be necessary. The hydraulic cement should be removed by chipping and grinding in order to gain access to the crack. There are some scenarios where this can become more complicated. For such situations, we advise you get in touch with an Emecole Metro technical support expert for additional ideas or workarounds.

Can this product be used in the middle of winter or when the temperature outside is below freezing? What is the coldest (or warmest) temperature your product will work in?

The ideal temperature for the use of the materials packaged in this kit is between 40 and 100 degrees Fahrenheit. Assuming that the basement is heated, any outside temperature should not impact the performance of the chemicals during the basement crack repair process. The only caveat is that chemicals should not be stored in freezing temperatures.
